CrazyWriter HSP PC/SC (OEM)
Multi-interfaces USB & PC/SC contactless reader (coupling device), remote antenna incl.

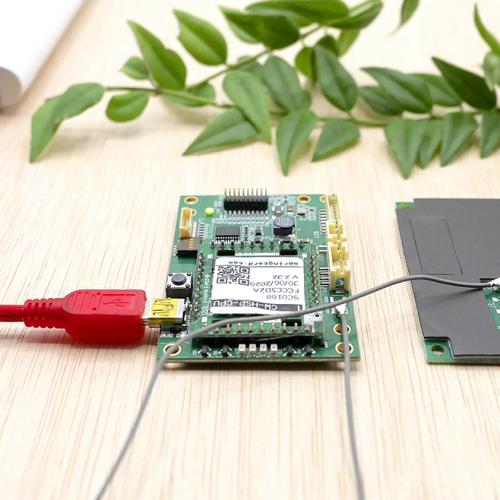

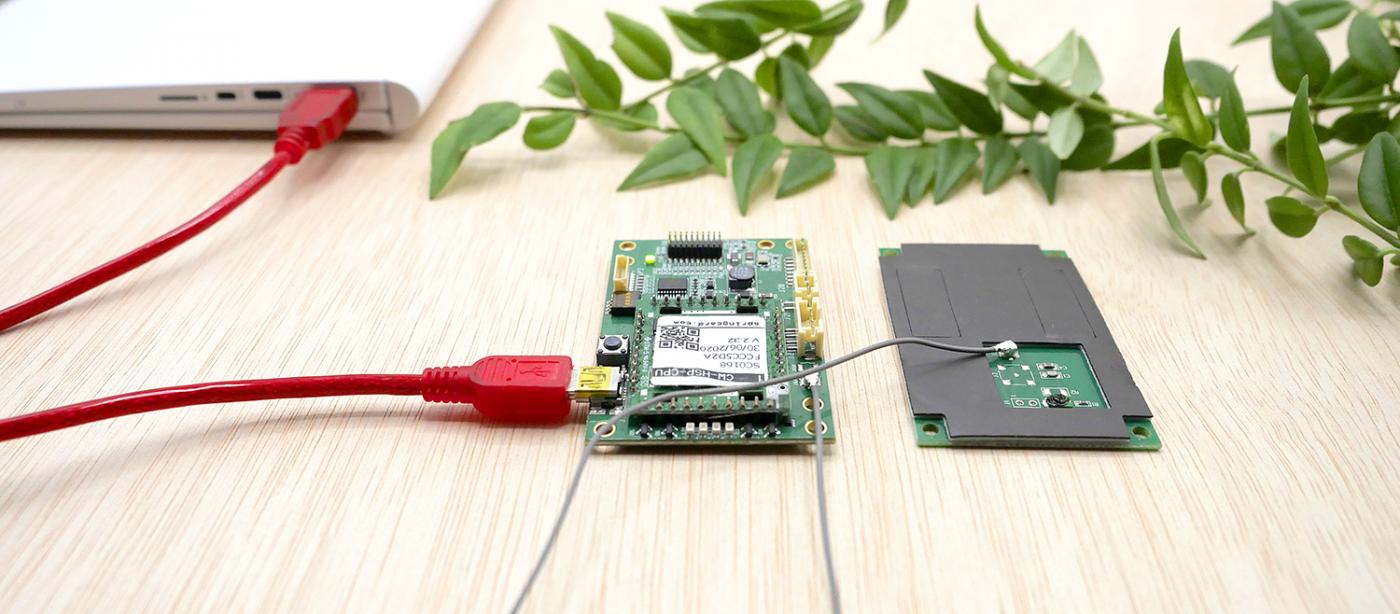

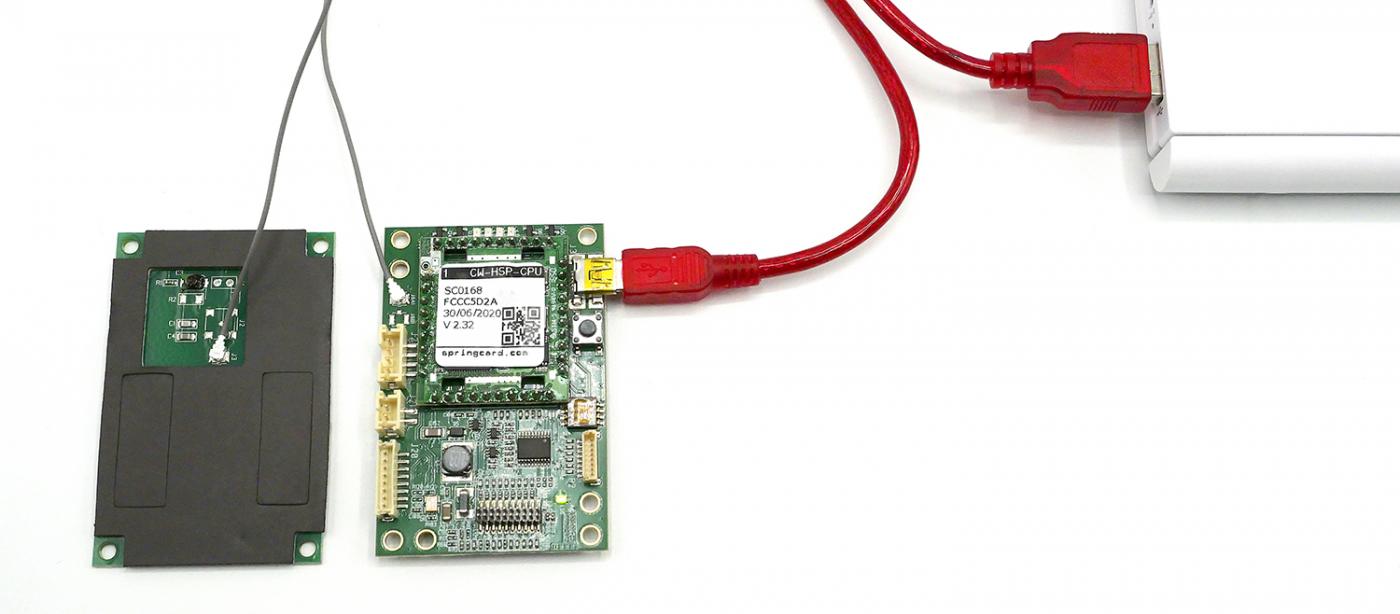

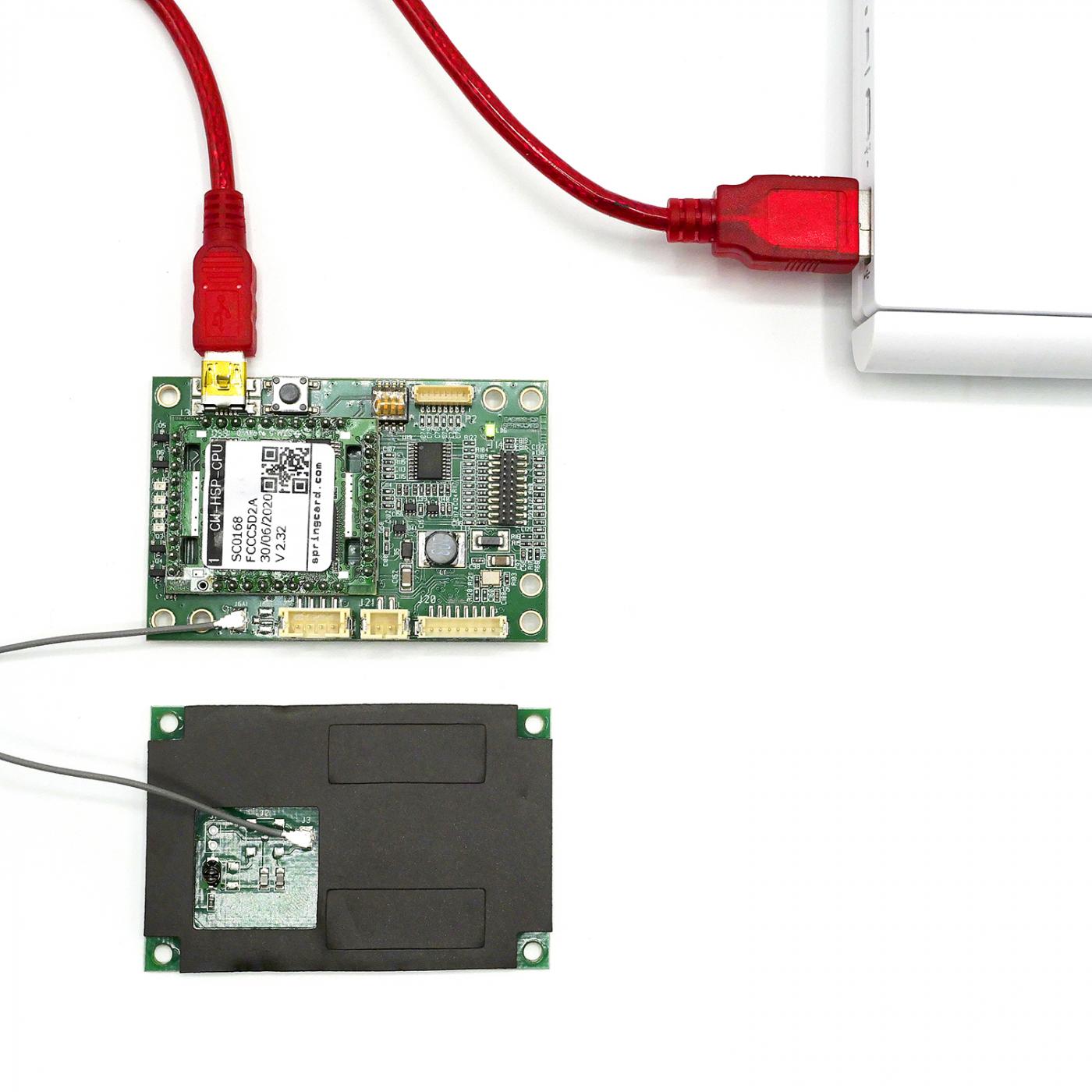

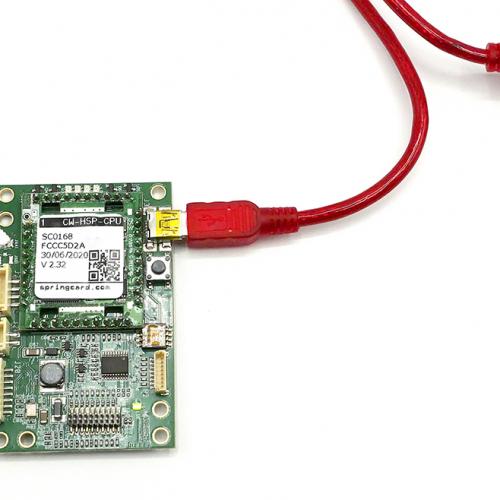

The SpringCard CrazyWriter HSP is made up of a remote antenna (asymmetric) linked by a thin micro-coax cable.

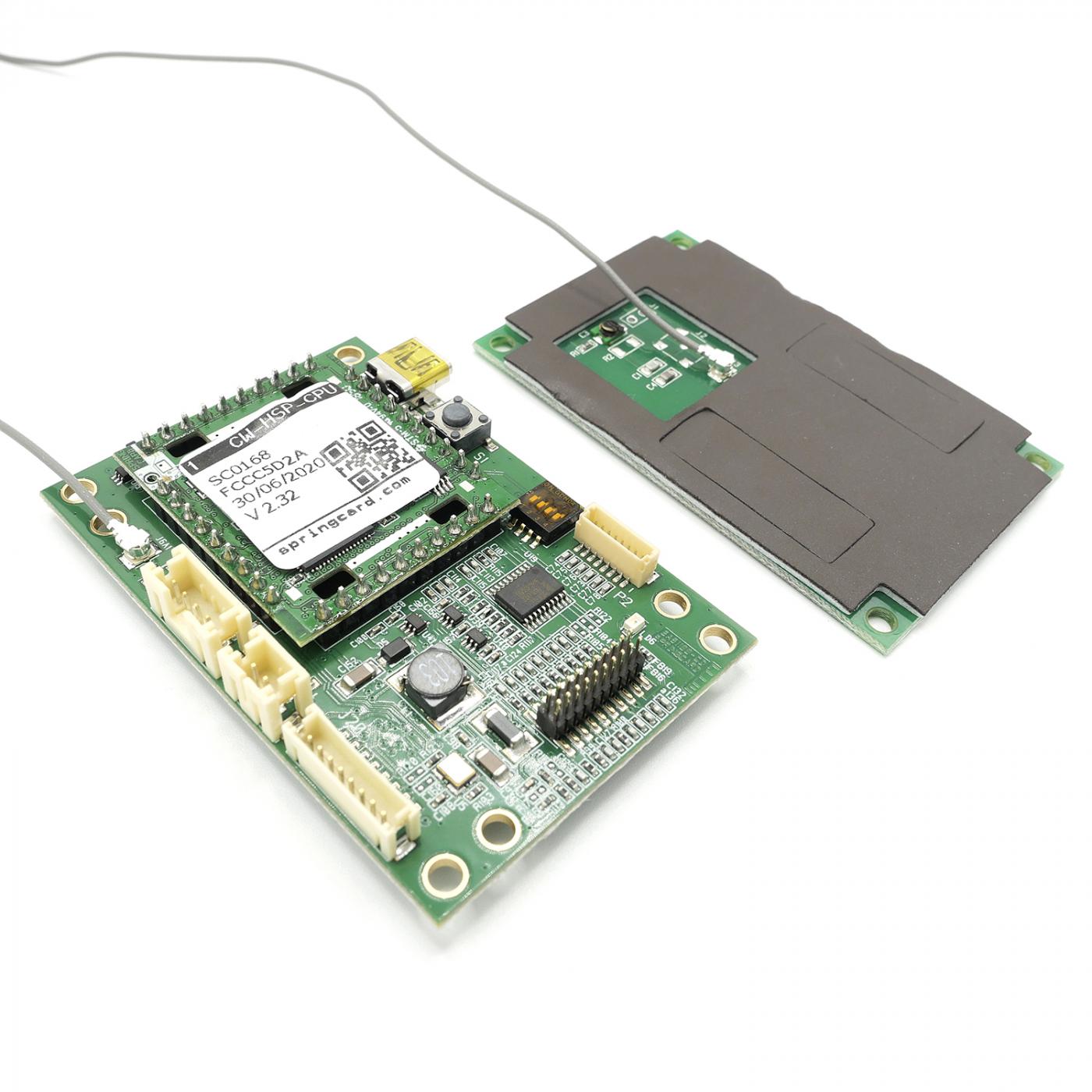

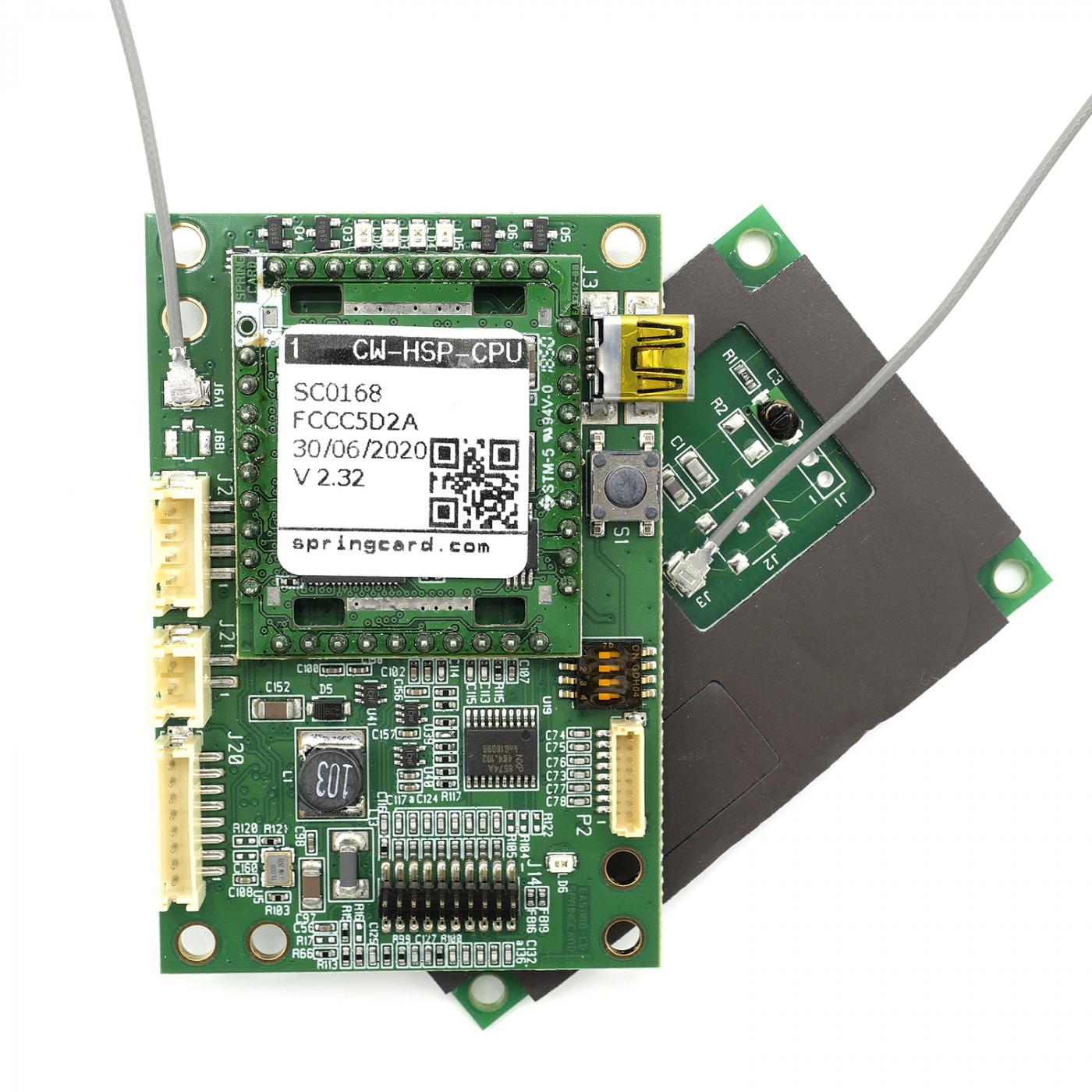

Both cards measure 69x45mm and are linked by a ribbon cable.
The coupling device is compliant with the PC/SC standard. Moreover, the speed of the USB interface combined to the high rate of the ISO 14443 standard enable the module to reach the best transaction speed.
Two optional cards can complete the CrazyWriter HSP:
- either one with 1 contact card slot (ID-1 / 1FF size),
- or one with 3 additional mini-SIM sized SAM cards slots (ID-000 / 2FF size).
DISCOVERING PC/SC
To help you, we wrote an introduction to PC/SC.
If you start, our pack of tools Quickstart for PC/SC will also be useful.
Here the presentation of the CrazyWriter HSP OEM in video.
Standards
- Carrier frequency: 13.56MHz
- ISO/IEC 14443 (1, 2, 3 and 4 'T=CL', both type A and type B): Proximity Coupling Device (PCD)
- ISO/IEC 15693 (1, 2, 3): Vicinity Coupling Device (VCD) or Base Station for RFID labels and tags; ISO/IEC 18000-3M1
- ISO/IEC 21481 (ECMA 352): the device is able to communicate with any NFC object running in card emulation mode
- ISO/IEC 18092 / NFC peer-to-peer (initiator, passive communication mode only)
- Coupler's firmware embeds T=CL protocol (ISO-DEP), 256-byte frames
RF Bitrate
- 106, 212, 424 or 848kbit/s (ISO 14443, NFC-A & NFC-B), 212 or 424kbit/s (FeliCa, NFC-F), 26kbps (ISO 15693, NFC-V)
Supported cards/tags/labels
- ATMEL CryptoRF
- ASK CTS256/CTS512
- Calypso (CD97, CD21, GTML, etc), Innovatron radio protocol "14443 B'"
- FeliCa Lite, Lite-S (NFC Forum T3T)
- HID iClass, Inside PicoTag (UID only)
- Infineon SLE66 family
- Innovision Jewel, Topaz (NFC Forum T1T)
- NXP Mifare UltraLight, NTAG (NFC Forum T2T), Mifare Classic, Mifare Plus, Desfire, SmartMX...
- NXP ICODE-SLI family
- ST MicroElectronics SR, SRI, SRIX families
- ST MicroElectronics LR family
- Texas Instrument my-d proximity
- Texas Instrument my-d vicinity
- Thinfilm NFC Barcode
- Embedded APDU interpreter, giving easy access to memory contactless cards (NFC Forum Tags, Mifare, ICode and others) through classical READ BINARY and UPDATE BINARY commands
Antenna
- Remote, unbalanced
Host interface
- USB 2.0 full-speed (12Mbit/s), compliant with USB 1.1 and 3.0
- PC/SC v2 compliant - USB CCID profile
- PC/SC driver for Windows Vista/7/8/10 (32 and 64 bits)
- Supported by PCSC-Lite open-source PC/SC stack and driver on Linux and macOS
Software integration / development
- Free SDK and sample software for PC/SC couplers
- [Blog] SpringCard Net PC/SC for PCSC-LITE
- [Blog] SpringCard Net PC/SC for Windows
Power
- Powered by USB (5V DC)
Connectors
- 4-pin JST PHR (USB)
- USB mini type B
- Jack 2.1 x 5mm (power)
- 50-ohm µ-coax (unbalanced antenna) (Hirose)
- 8-pin JST ZHR (ID-1 smartcard interface)
- 2-pin JST PHR (ID-1 smartcard presence)
Firmware upgrade
- In-field, no physical action on the device using SpringCard FUU application and Atmel USB DFU driver
Smart card
- 1 ID-000 slot for SIM or SAM smartcard
- ISO/IEC 7816 (3 and 4): 4MHz clock, supports both T=0 and T=1 protocols, up to TA1=96
- In option: ID-1 slot for smart card
- In option: Daughter board for 3 more ID-000 slot
Certifications
User manuals
Smartcards and contactless smartcards - Integrator's Implementer's Guide en - pdf
Latest, All versions
